High-Barrier PET / AL / PE Composite Film Roll - ≤0.05 OTR UV Blocking 24M Shelf Life

Dongguan Bright Packaging Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

High-Barrier PET / AL / PE Composite Film Roll - ≤0.05 OTR UV Blocking 24M Shelf Life

Brand Name : Bright Pack

Model Number : B010

Certification : patent for invention、BRC、GRS

Place of Origin : Guangdong,China

MOQ : 100pcs

Price : $3-3.5/kg

Payment Terms : T/T,Western Union

Supply Ability : 200000pcs/day

Delivery Time : 11-13work days

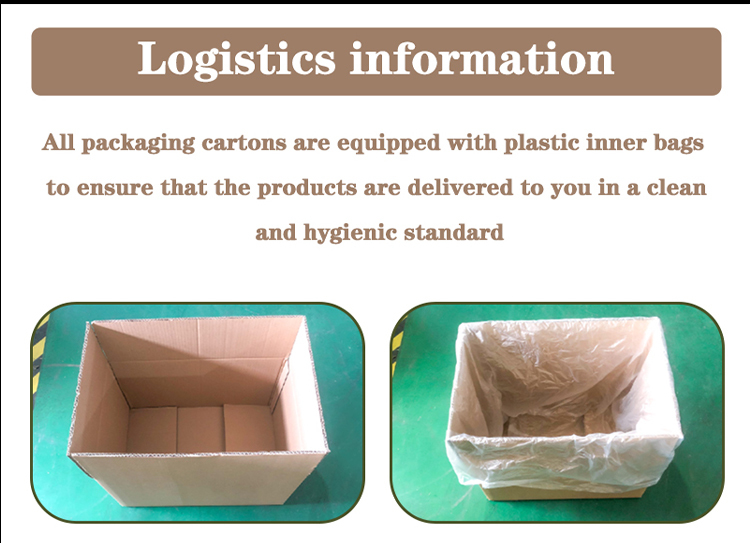

Packaging Details : Export special carton packaging and plate

Customization : Support

Colour : Up To 10 Colour Or No Printed

Odor Proof : Yes

Custom Order : YES.

Colors : CMYK/Pantone

Sample : Free

Puncture Resistant : Yes

Packaging Type : Bulk Pack

Quantity Per Pack : 100

Recyclable : Yes

Quantity : Pack of 100 bags

Bag Type : Three side seal stand up bag

Bpa Free : Yes

Color : Transparent

Height : 115 MM

Contact Now

Product Attributes

Attribute Description
Material Structure 3-layer laminate: ​PET outer layer​ (12–25 μm, UV blocking & mechanical strength), ​Aluminum foil core​ (6–9 μm, primary O₂/H₂O barrier), ​PE inner sealant layer​ (50–100 μm, heat-sealable)
1
9
.
Primary Function Extends product shelf life to ​**≥24 months**​ by blocking oxygen (OTR ≤0.05 cm³/m²/day), moisture (WVTR ≤0.1 g/m²/day), and UV light (>99% at 200–400 nm)
1
4
9
.
Barrier Technology Aluminum foil core enables ​OTR ≤0.05 cm³/m²/day​ (ASTM F1249) and ​WVTR ≤0.1 g/m²/day​ (ASTM D3985). PET layer provides UV protection (transmittance <0.5% in UV range)
4
9
.
Seal Integrity Heat-sealable PE layer (130–180°C) with ​seal strength ≥25 N/15mm​ (ASTM F88), ensuring leak-proof packaging for powders/liquids
1
8
.
Mechanical Durability High puncture resistance (≥35 N, ASTM D7192) and tensile strength (MD: 150–241 MPa, TD: 120–233 MPa)
4
8
.
Certifications Complies with ​FDA 21 CFR, ​EU 10/2011, ​ISO 22000, ​REACH, and ​RoHS​ for food/pharma safety
1
9
.
Sustainability Recyclable PET/AL/PE structure; aluminum layer separable in industrial recycling streams
9
.

Product Specifications

Parameter Specification Test Standard
Total Thickness 80–150 μm (customizable: PET 12–25μm, AL 6–9μm, PE 50–100μm)
1
9
ISO 4593
OTR ≤0.05 cm³/m²/day (23°C, 0% RH) ASTM F1249
WVTR ≤0.1 g/m²/day (38°C, 90% RH) ASTM D3985
UV Transmittance <0.5% (200–400 nm) ASTM D1003
Heat Seal Strength ≥25 N/15mm (PE layer, 130–180°C) ASTM F88
Tensile Strength MD: 150–241 MPa, TD: 120–233 MPa ASTM D882
Roll Dimensions Width: 200–1,200 mm
Length: 500–5,000 m
Core ID: 76 mm (3") or 152 mm (6")
1
9
N/A
Temperature Resistance Storage: -30°C to +60°C; Sealing: 130–180°C ASTM D882
Shelf Life Extension ≥24 months (validated via accelerated aging: 40°C/75% RH for 90 days)
1
ISO 188
MOQ & Logistics MOQ: 500 kg
Lead Time: 7–15 days
Packaging: Moisture-proof pallets
1
N/A
